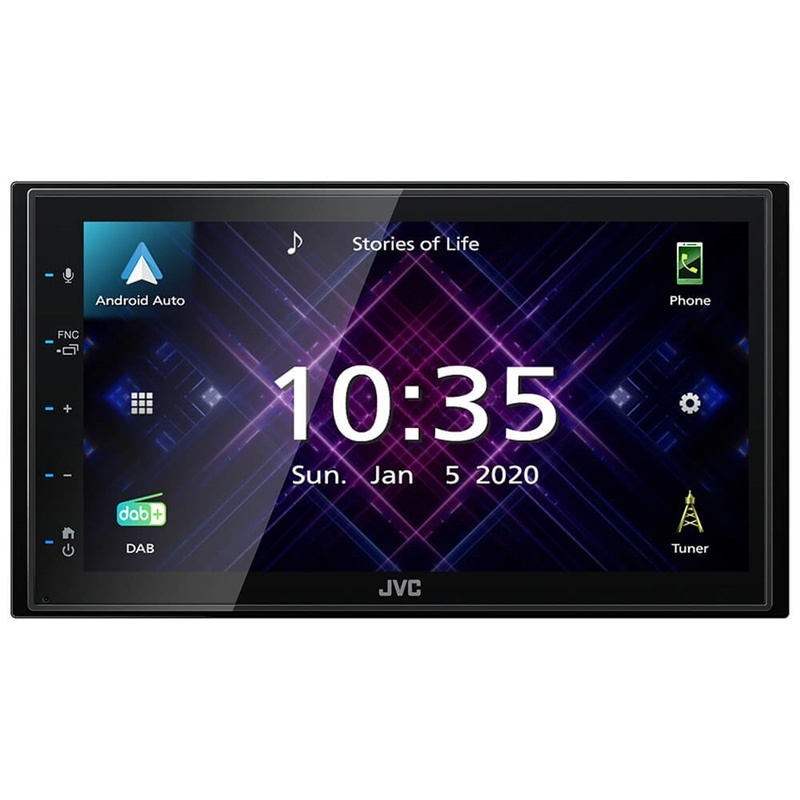

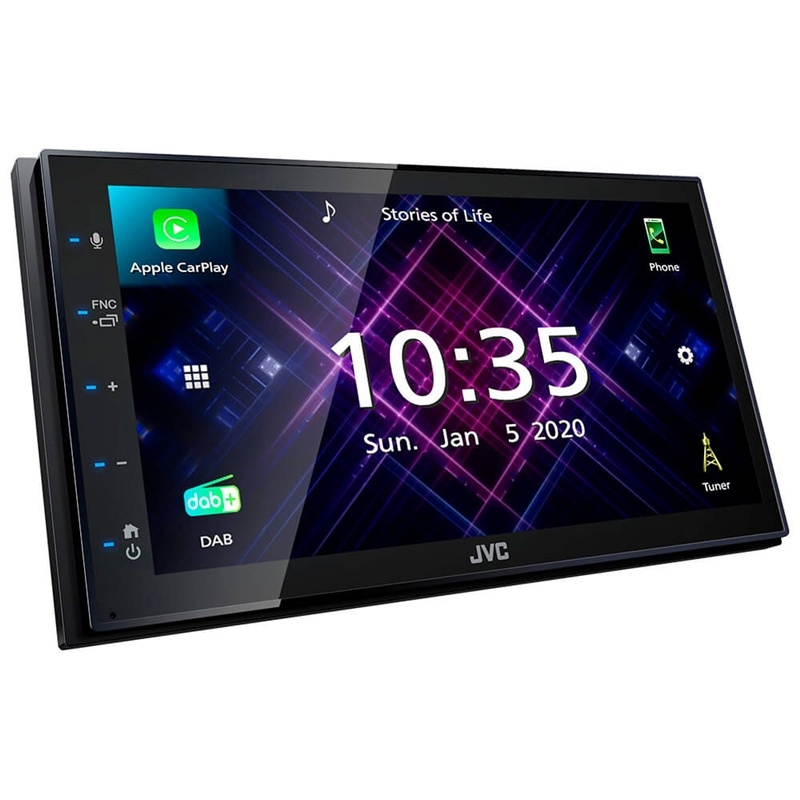

JVC 2-DIN-AV-receiver KW-M565DBT
- DAB+ Tuner built-in

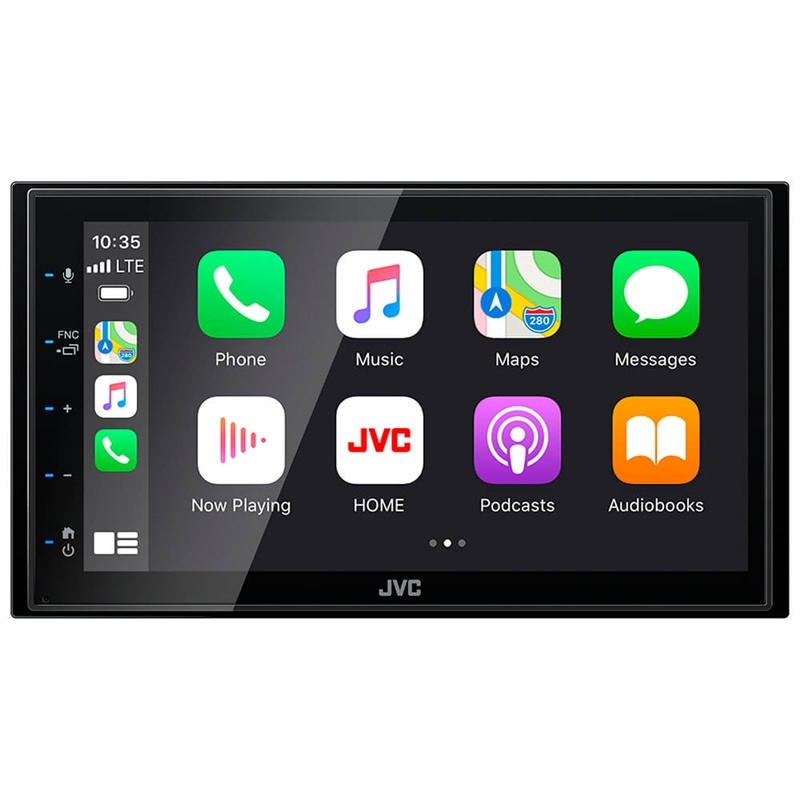

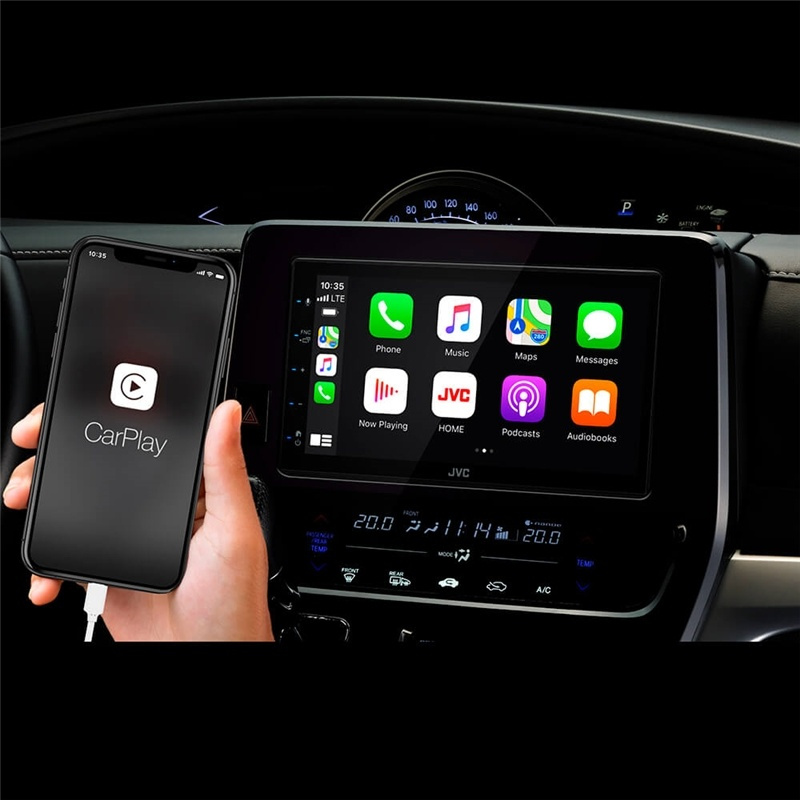

- Apple Car Play (via USB)

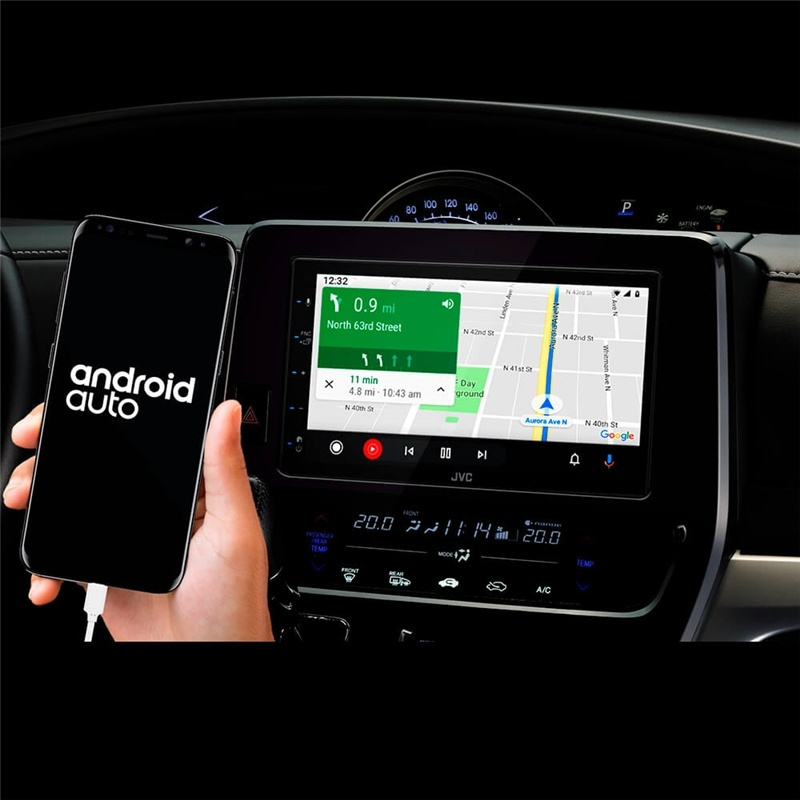

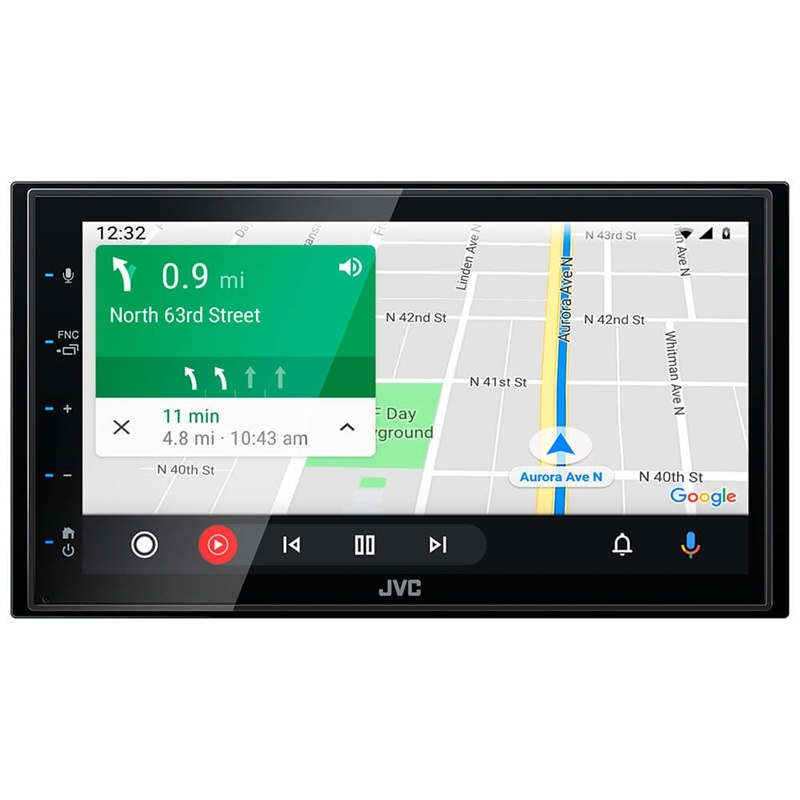

- Android Auto (via USB)
- Bluetooth Hands Free Call (HFP)
- Bluetooth Audio Streaming & Control (A2DP, AVRCP)
- Bluetooth Voice Dialing (voice recognition compatible mobile phone required)
- Bluetooth Phone Book Access Profile (PBAP)
- Auto Pairing for iPhone/Android
- USB 1.5A High Current Charging
- 13-Band Graphic EQ
JVC's KW-M565DBT Short Body Digital Media Receiver comes with integrated DAB+ tuner for cristal clear radio listening and Bluetooth technology for hands-free calling and wireless music streaming. Featuring Android screen mirroring via USB apps such as Waze Navigation and Google Maps as AndroidAuto or Apple CarPLay can be displayed and controlled via the 6.8" touch screen. An optional rear view camera can be connected for reverse parking. This unit also includes iPhone/iPod music playback. Please note there is no CD mechanism included in this model. However, this does allow us to reduce the depth of the product to 75mm which will fit into vehicles having less dashboard audio space than traditional products.
Specifications
Radio Tuner
Radio Data System Yes
Preset Stations 20(FM:15ch, AM:5ch)
Automatic Presetting (Strong Station Sequential Memory) Yes
DAB Built-in
Frequency Range Band lll: 174.928MHz to 239.200MHz
FM
Frequency Range 87.5-108.0MHz
AM
Frequency Range (MW)531-1,611kHz,(LW)153-279kHz
Audio
Maximum Power Output (Front & Rear) 50Wx4
Full Bandwidth Power (Front & Rear) 22W x 4 (Full Bandwidth Power, at less than 1% THD)
EQ Yes (13-Band Graphic EQ)
Preset EQ Yes (7Preset + 3user)
High-Pass Filter/Low-Pass Filter Yes/Yes
Bass Boost Yes
Time Alignment Yes

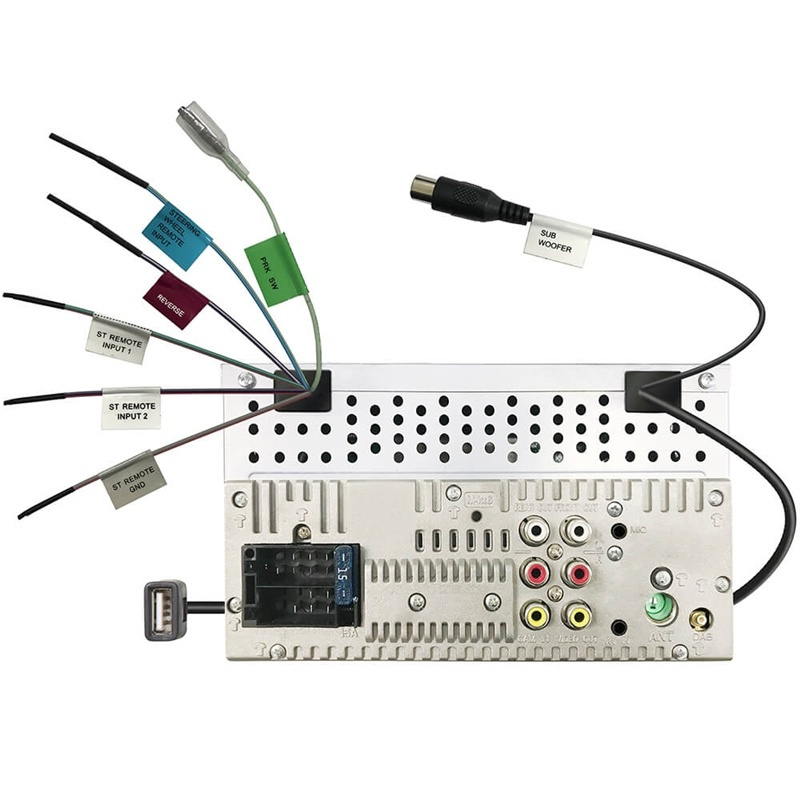

Inputs an outputs
AV Input mini jack (AV-IN or Camera switchable)
Video Out RCA
Pre-output Level/Impedance 2.0V / 10k ohms
Rear view camera Input Yes
Line Output Terminals 2Preouts (Terminal) + Sub WF (Cable)
Subwoofer Output with Level/Frequency Control Yes
General
Back Up Memory Yes
Wireless Remote Control Ready (RM-RK258 required)
Steering Remote Control Ready Yes
Learning Direct OEM Remote Yes
ISO Connector Yes
Dimensions (W x H x D)
Installation Size 182 x 112 x 75 (mm)
Weight 1.3kg : inlcuding sleeve and escutcheon
