PowerBox Electric car with Socket EV15RFID Typ2 22kW
- Charger for demanding customers
- LCD display
- 3-phase connection*
- Type 2 connector - European Standard
- IP66 - Dust and water tight
- Perfect for the Nordic climate
- RFID lock function
Charger for demanding customers
Electric vehicles are the future. Equip today with the GC EV PowerBox charger and turn your garage, home space or office car park into an EV / PHEV user-friendly place. Modern, fast charging system and minimalist design - that's what you get with the Green Cell charger.
LCD display
All relevant charging data is now in view - current power, session time, operating temperature or even the replenished capacity
LED
At a glance, you can see whether the loading is still in progress or it has just finished.
Better to have a choice
Type 2 socket allows you to connect any cable, depending on the terminal you currently need. Is it a Type 2 cable, or maybe Type 1?

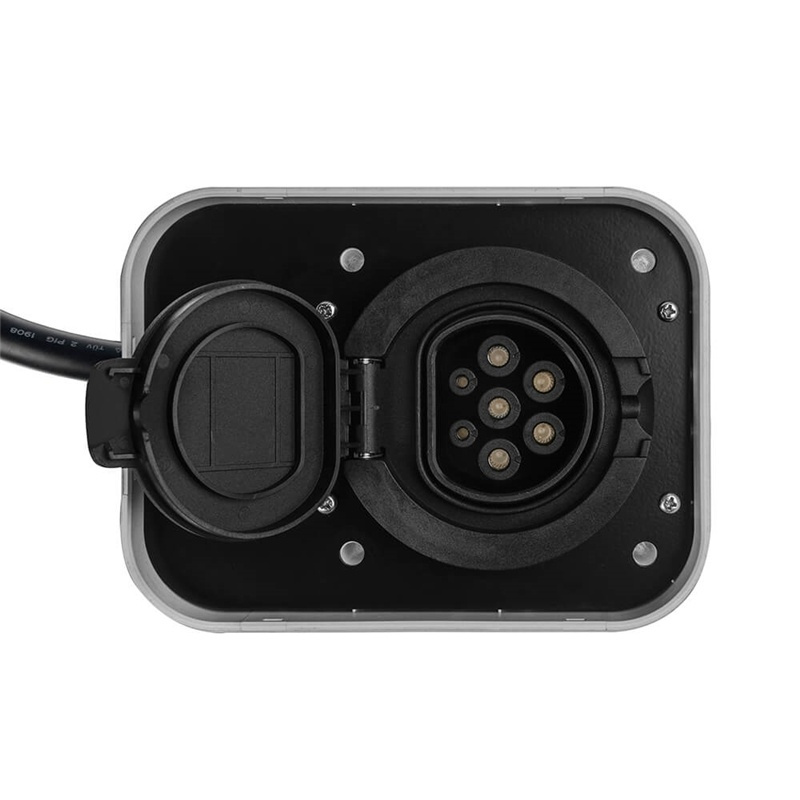

Type 2 connector - European Standard
The GC EV PowerBox charger socket is the most popular Type 2 plug in Europe (IEC 62196-2). As a standardized connector, it will ensure wide compatibility with cables that can be purchased in the EU, eg Type 2 - Type 2 and Type 2 - Type 1.
Don't waste your time and charge your car with power up to 22kW
The Green Cell charger allows for the fastest possible 22kW AC charging - over 10 times faster than from a wall socket. In practice, this means that when you wake up in the morning, the car is 100% charged and fully ready for any route.
If your installation does not allow you to supply this current, the charger will simply work with the highest available power, e.g. 11kW or 7.2kW. If one day it is possible to increase the power of the installation, there will be no need to change the charger. GC EV PowerBox is ready for the future now.
Safety
The wallbox are equipped with RCD AC and DC protection and there is no need to install additional protection. It is a Type A protection with additional DC filter, adjusted to suit EV charging needs.
RFID lock function
5 key tags are included in the box that unlocks the charger for the user.
Compatible vehicles
Tesla Model 3 / Model Y / Model S / Model X
Mercedes EQC / A250e / C350e / GLC 350e
Audi E-Tron
BMW i3 / i3s / i8
Jaguar I-Pace
Volvo S90 PHEV / V60 PHEV / V90 PHEV / XC60 PHEV / XC90 PHEV
Renault ZOE
Nissan LEAF
Kia e-Niro / e-Soul / Niro PHEV / Optima PHEV
Hyundai IONIQ Electric / KONA Electric
Volkswagen e-Golf / Golf GTE / e-Up! / ID.3
Skoda Citigo iV

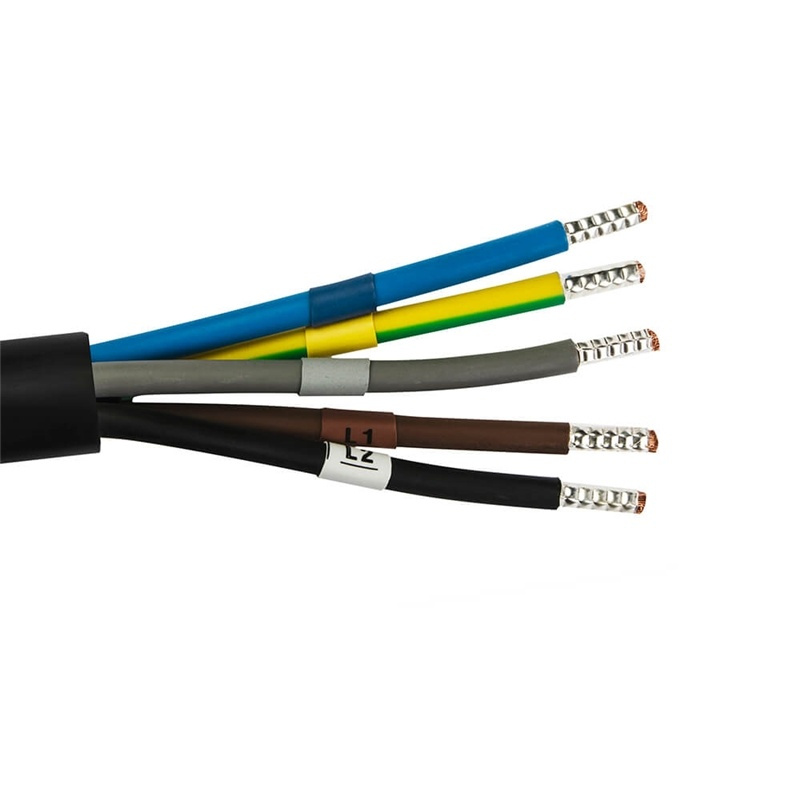

*3-phase connection - Must be connected by a qualified electrician!
Specification
Power 22 kW
Amperage 32 A
Output Integrated socket Type 2
Input 380 V +/- 20 V AC (3-phase), 32 A (max), 50 Hz
Overheat protection Yes
Colour Black
Warranty 24 months
Manufacturer Green Cell
Working temperature -40 - 55 °C
Display LCD
Additional features: IP66
Surge protection Yes
Product code EV15
