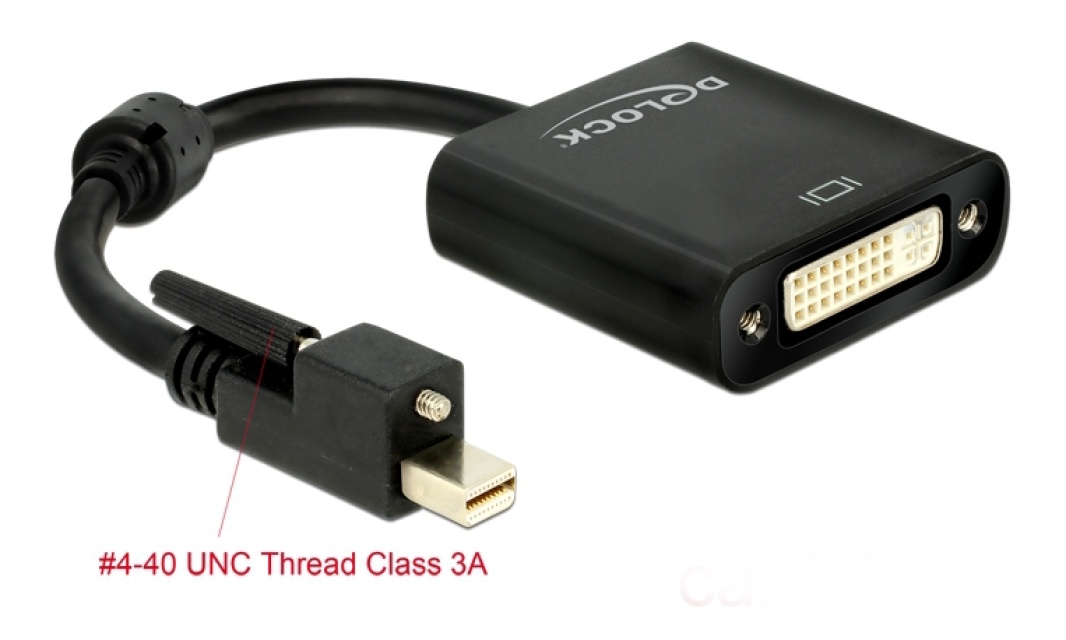

DeLOCK miniDisplayPort - DVI adapter, DisplayPort 1.2, DVI-I Dual Link female, 0.25m, 4096x2160 at 24Hz, black
This adapter enables you to connect e.g. a DVI monitor through a free mini Displayport interface. The adapter supports a resolution up to Ultra HD (4K) and is backward compatible to Full-HD 1080p. The adapter offers an active conversion, thus it is also suitable for graphics cards that are not capable of outputting DP++ signals. The screw of the mini Displayport connector secures the connection and prevents accidental unplugging of the cable.
Specification
• Connector:
mini Displayport 20 pin male with screw >
DVI-I (Dual Link) 24+5 female
• Screw type: #4-40, thread type UNC, thread class 3A, American Standard Screw
• Chipset: Parade PS171
• Displayport 1.2 specification
• Cable gauge: 32 AWG
• Cable diameter: ca. 5.5 mm
• Gold-plated connector
• Active converter, for graphics cards with DP and DP++ output
• Supports a resolution up to 4K (4096x2160 at 24 Hz or 3840x2160 at 30 Hz) - depending on the system and the connected hardware
• Supports HDCP 1.3
• Supports Eyefinity
• 1 x ferrite core
• Cable length: ca. 25 cm (incl. connector)
• Colour: black
• OS independent, no driver installation necessary
System requirements
• A free mini Displayport female port
Package content
• Adapter mini Displayport to DVI
Package
• Poly bag
