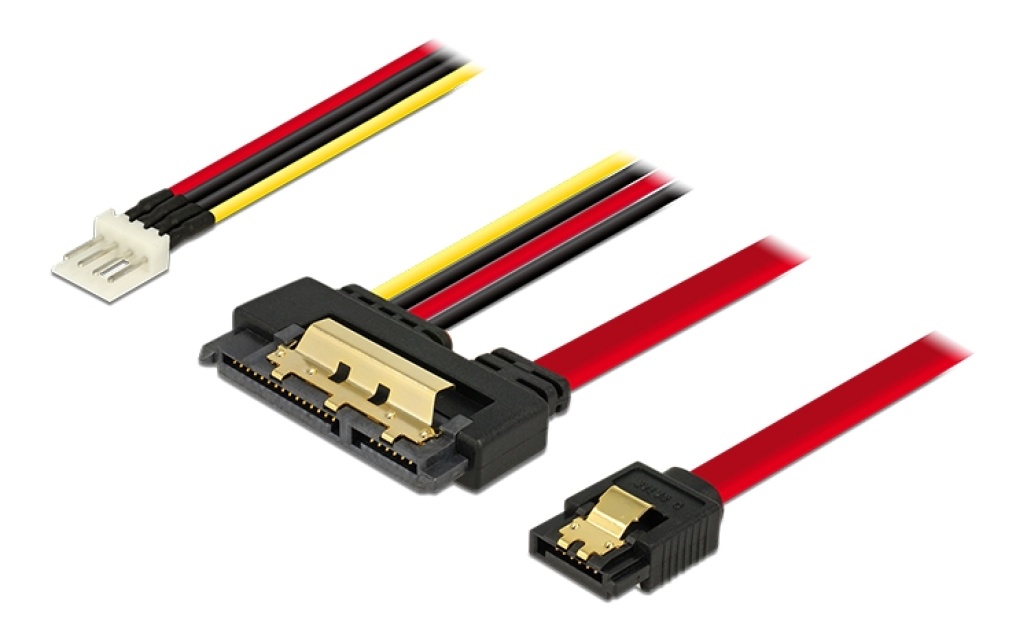

DeLOCK SATA cable, 7-pin female + 22-pin female and 4-pin power, 5V+12V, SATA 6Gb/s, straight contacts, 0,3m, red
This cable by Delock enables the connection of a device with 22 pin SATA interface over a free SATA 7 pin port and a free 4 pin Floppy power interface of the power supply. The metal clips on the SATA receptacles ensure that the cable reliably clicks into place.
Specification
• Connectors:
1 x SATA 6 Gb/s 7 pin receptacle + 1 x Floppy 4 pin power plug >
1 x SATA 6 Gb/s 22 pin receptacle straight
• Data transfer rate up to 6 Gb/s
• Downwards compatible to SATA 1.5 Gb/s and 3 Gb/s
• Voltage: 5 V + 12 V
• Cable gauge:
26 AWG data line
20 AWG power line
• Length incl. connectors: ca. 30 cm
System requirements
• A free SATA 7 pin interface
• One free Floppy power female
Package content
• SATA cable
