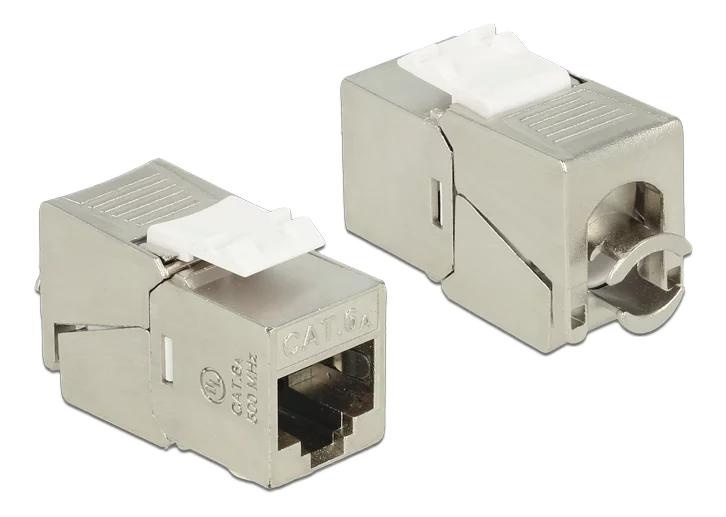

DeLOCK Keystone Module RJ45 jack > LSA Cat.6A STP compact

Art.nr: C70736

Connectors: external: 1 x RJ45 jack (8P/8C) > internal: LSA (toolfree)
Cat.6A specification
Shielded (STP)
Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2, EN 50173-1:2011 and EN 60603-7-51, and ANSI/TIA 568-C.2
Material: zinc die cast
TIA-568A/B pinout

€11.99

Qliro Checkout
50.000+ producten
Snelle bezorging

Productinformatie

Brutogewicht:	0.021 kg
Connector 1:	RJ45-shielded-female
Connector 2:	Open end network
Kabellengte:	0.03m
Kabelstandaard:	Cat 6a
Kabeltype:	Netwerk
Kleur:	Zilver

This module by Delock can be used to connect twisted pair cable to an RJ45 jack. With its standardised dimensions it can be used for easy snap-in mounting in e.g. a Keystone patch panel, face plate or surface-mount box.

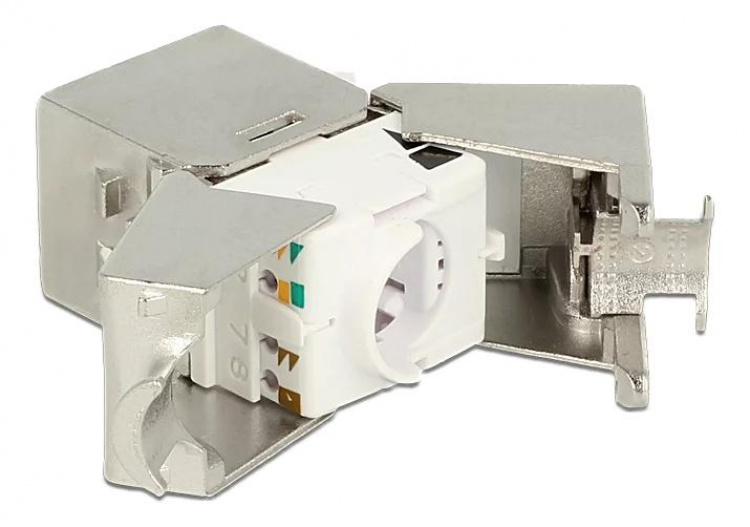

Connectors: external: 1 x RJ45 jack (8P/8C) > internal: LSA (toolfree)
Cat.6A specification
Shielded (STP)
Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2, EN 50173-1:2011 and EN 60603-7-51, and ANSI/TIA 568-C.2
Material: zinc die cast
TIA-568A/B pinout
For solid or stranded wire up to 0.573 mm (23 - 26 AWG)
For Keystone ports with 19.2 x 14.9 mm
Dimensions (LxWxH): ca. 35.3 x 14.5 x 22.0 mm

4043619861798EAN:
