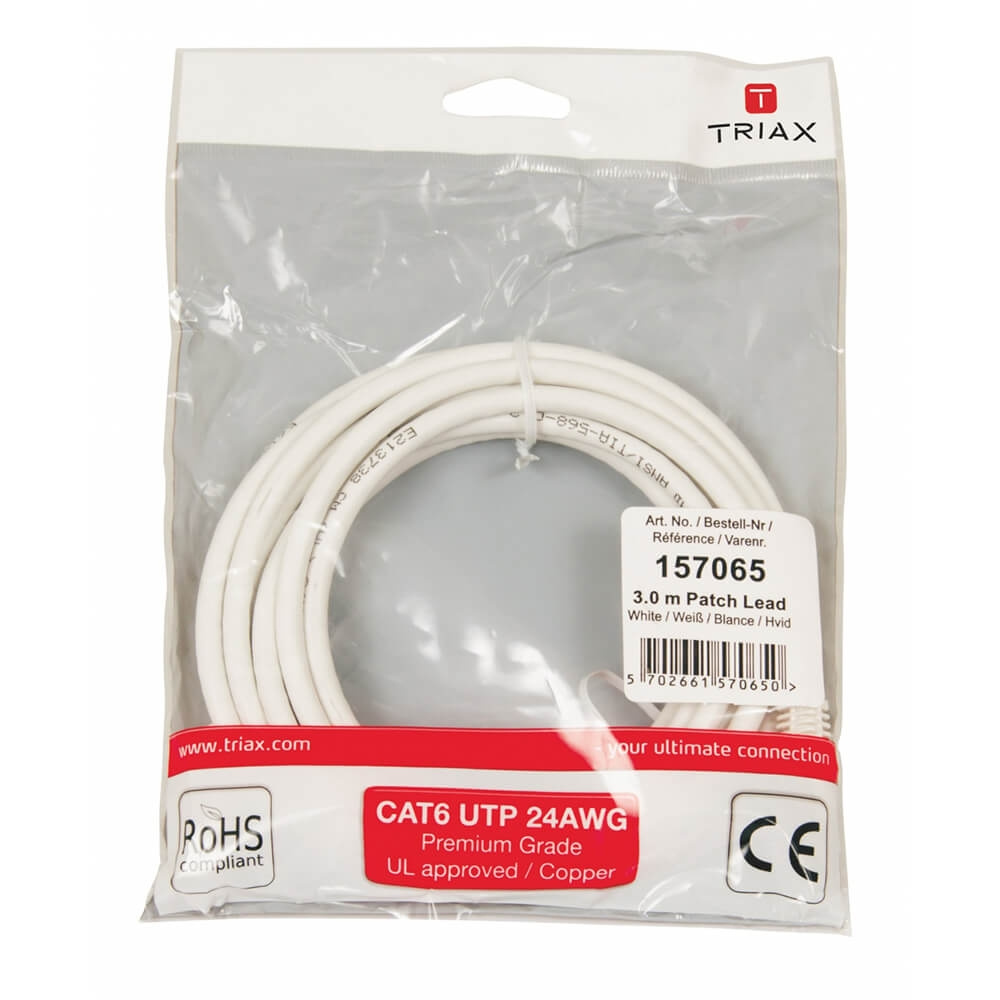

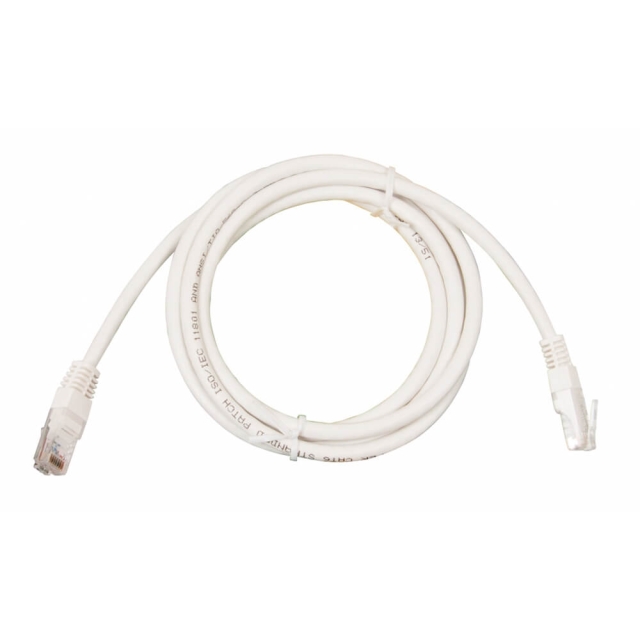

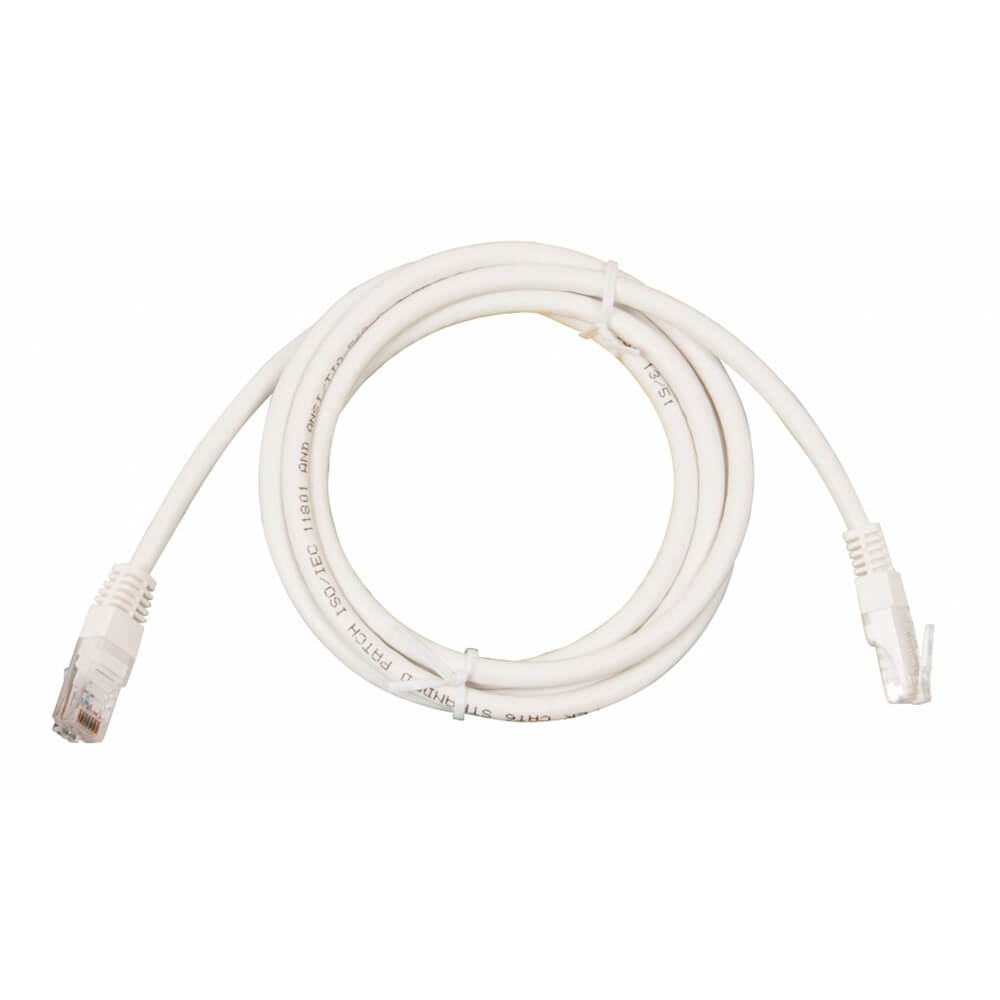

TRIAX Network Cable CAT6 UTP PVC 3.0m White

Art.nr: C18626
€6.99

Voeg toe aan winkelwagen
Verzendtijd:  4-7 werkdagen
  • Qliro Checkout
  • 50.000+ producten
  • Snelle bezorging
Productinformatie

TRIAX Network cable CAT6 UTP PVC White

  • Fast gigabit Ethernet cable
  • UTP 250 MHz Multi-wire, Solid copper 24 AWG.
  • The central pair separator maintains performance and geometry
  • Superior performance and quality.
  • Protective cover to protect the RJ45 connector
  • Cable type: Round cable
  • Packing: Polybag with hanger
  • Cable: PVC white
  • Complies with standard IEC 61935-2
  • CE, RoHS compliant
  • UL approved

Cat6 UTP patch cable has 24AWG unshielded twisted pair stranded copper cable with a high performance modular connector at each end. Cat6 patch cables are designed for use in data communications networks for the transmission of telephone, Internet and video / TV signals. Cat6 Patch Cable supports Gigabit Ethernet and can handle data transfer speeds of up to 1000 Mbps and up to 250 MHz bandwidth.

Specifications
CONSTRUCTION
Introduces material Cu stranded
Introduces dimension 7x 0.2 mm
Dielectric Material Solid PE
Dielectric Dimension 1.02 ± 0.05 mm
Flat filler Material Flexible PE
Outer casing - material PVC
Outer casing - dimension 5.6 ± 0.30 mm
Color code - pair 1 Blue / White-Blue
Color code - pair 2 Orange / White-Orange
Color code - pair 3 Green / White-Green
Color code - pair 4 Brown / White-Brown
NEXT
Next 8 MHz 65.0 dB
Next 20 MHz 59.1 dB
Next 3125 MHz 55.4 dB
Next 625 MHz 49.6 dB
Next 100 MHz 45.7 dB
Next 200 MHz 40.1 dB
Next 250 MHz 38.3 dB
CHARACTERISTICS
Type CAT 6
REFLECTION DAMPING
Return loss @ 4 MHz 21.6 dB
Return loss @ 8 MHz 22.5 dB
Return loss @ 10 MHz 22.8 dB
Return loss @ 20 MHz 23.7 dB
Return loss @ 31.25 MHz 23.1 dB
Return loss @ 62.5 MHz 20.0 dB
Return loss @ 100 MHz 18.0 dB
Return loss @ 200 MHz 15.0 dB
Return loss @ 200 MHz 14.0 dB
ELECTRICAL DATA
Characteristic Impedance 1100MHz 100 ± 15 Ω


5702661570650EAN:
  • Specificaties
  • Lengte: 3 m
