BIOS Features: UEFI BIOS
BIOS Type: AMI
Width: 30.5 cm
Bus Clock: 4800 MHz (O.C.), 5600 MHz (O.C.), 6000 MHz (O.C.), 4000 MHz, 4800 MHz, 6800 MHz (O.C.), 3600 MHz, 4400 MHz
Depth: 24.4 cm
Features: Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0
Expansion Slots: 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 5.0 x16 | 1 x PCIe 4.0 x16 (x4 mode) | 2 x PCIe 3.0 x1 | 1 x M.2 socket (2280 M.2, key M slot) | 3 x M.2 socket (2260/2280 M.2 key M slots) | 1 x M.2 socket (2230 M.2 key E slot)
Interfaces: 1 x HDMI | 1 x DisplayPort | 1 x USB-C 3.2 Gen 2 | 1 x USB 3.2 Gen 2 | 2 x USB 3.2 Gen 1 | 4 x USB 2.0 | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x audio line-in - mini-jack | 2 x antenna | 1 x PS/2 keyboard/mouse | 1 x LAN (2.5 Gigabit)
Hardware Features: ASRock Instant Flash, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, 6 Layer PCB, ASRock EZ Mode, ASRock Steel Slots, Hi-Density Power Connectors, 2oz Copper PCB, Water Pump Header, pre-mounted I/O shield, Intel Turbo Bo
Included Accessories: Standoff for M.2 socket, 5 x M.2 screws
Internal Interfaces: 1 x Embedded DisplayPort (eDP) - header | 1 x USB-C 3.2 Gen 2x2 - header | 4 x USB 3.2 Gen 1 - header | 4 x USB 2.0 - header | 1 x SPI - header | 1 x speaker - header | 1 x audio - header | 1 x Thunderbolt - header
Compatible Processors: (supports 12th and 13th Gen Intel Core / Pentium Gold / Celeron)
Chipset Type: Intel Z790
Storage Interfaces: SATA-600 - connectors: 8 x 7 pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 4.0 - connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 5
Max Size: 128 GB
Max Processors Qty: 1
Included Cables: 2 x Serial ATA cable
Included Software: ASRock A-Tuning, ASRock Dragon 2.5G LAN Software
Network Interfaces: 2.5 Gigabit Ethernet
Network Controller: Dragon RTL8125BG
Processor Socket: LGA1700 Socket
Registered or Buffered: Unbuffered
Compliant Standards: EuP Ready, ErP Ready, RoHS 2011/65/EU, EMC 2014/30/EU, DisplayPort 1.4, HDCP 2.3, UKCA, FCC Part 15 Subpart B
Power Connectors: 24-pin main power connector, 2 x 8-pin ATX12V connectors
Supports Ram Integrity Check: Non ECC
Technology: DDR5
Type: HD Audio (7.1-channel)

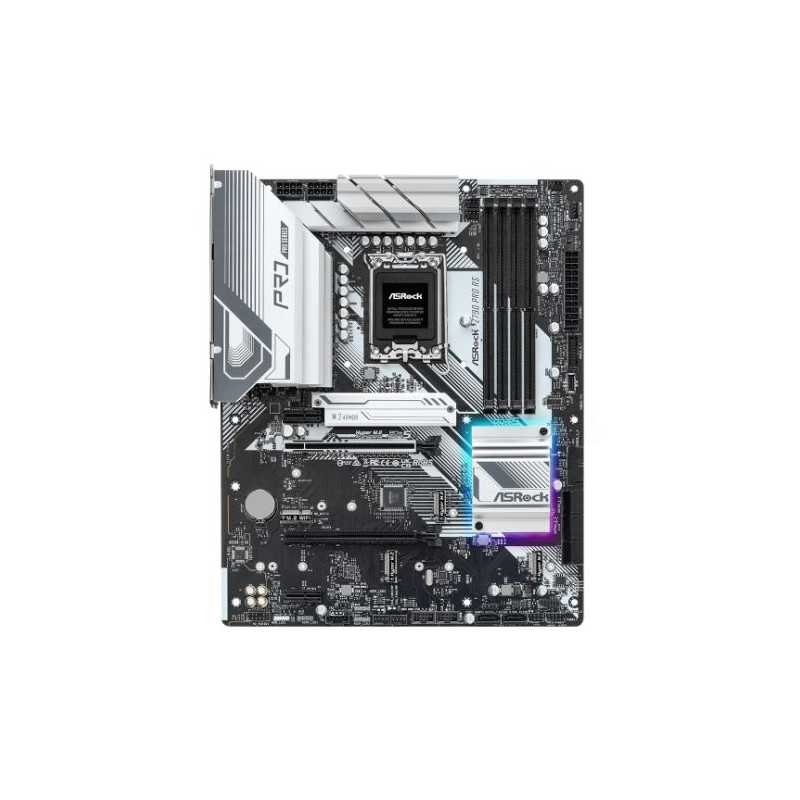

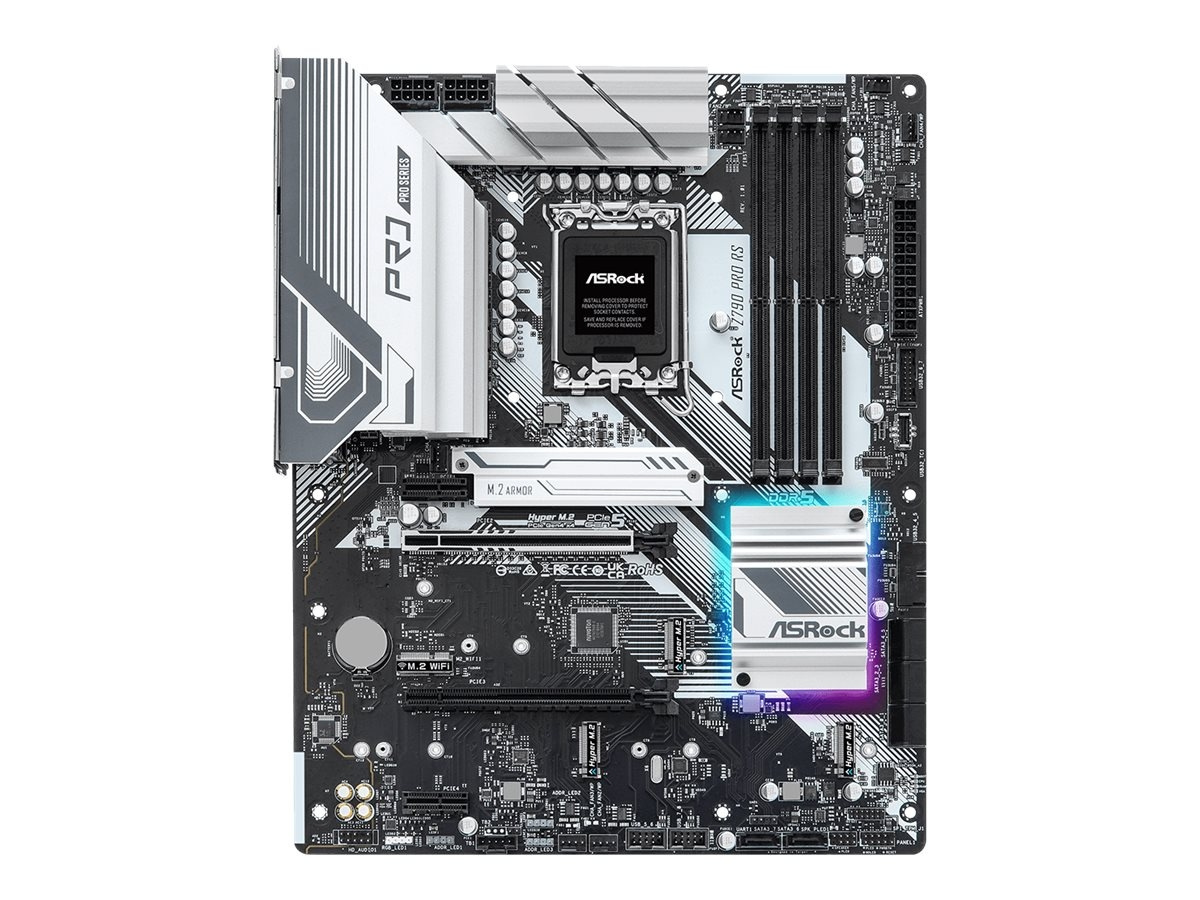

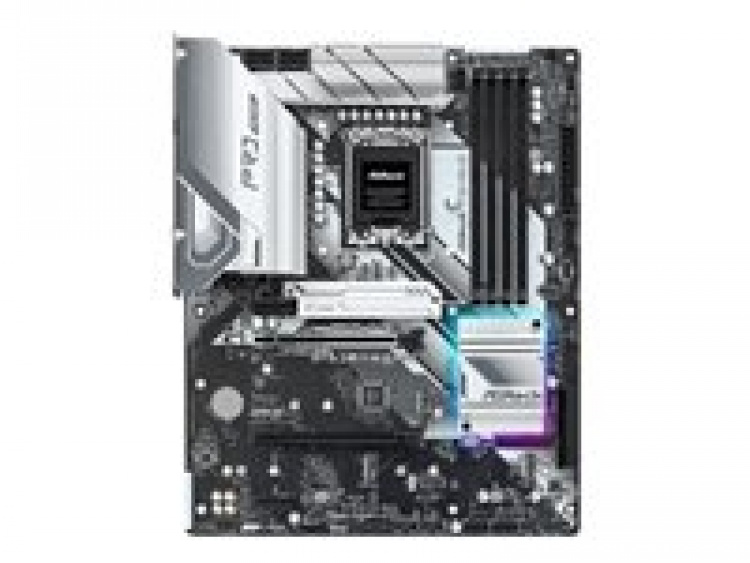

Product Type: Motherboard - ATX
4710483940767EAN:
