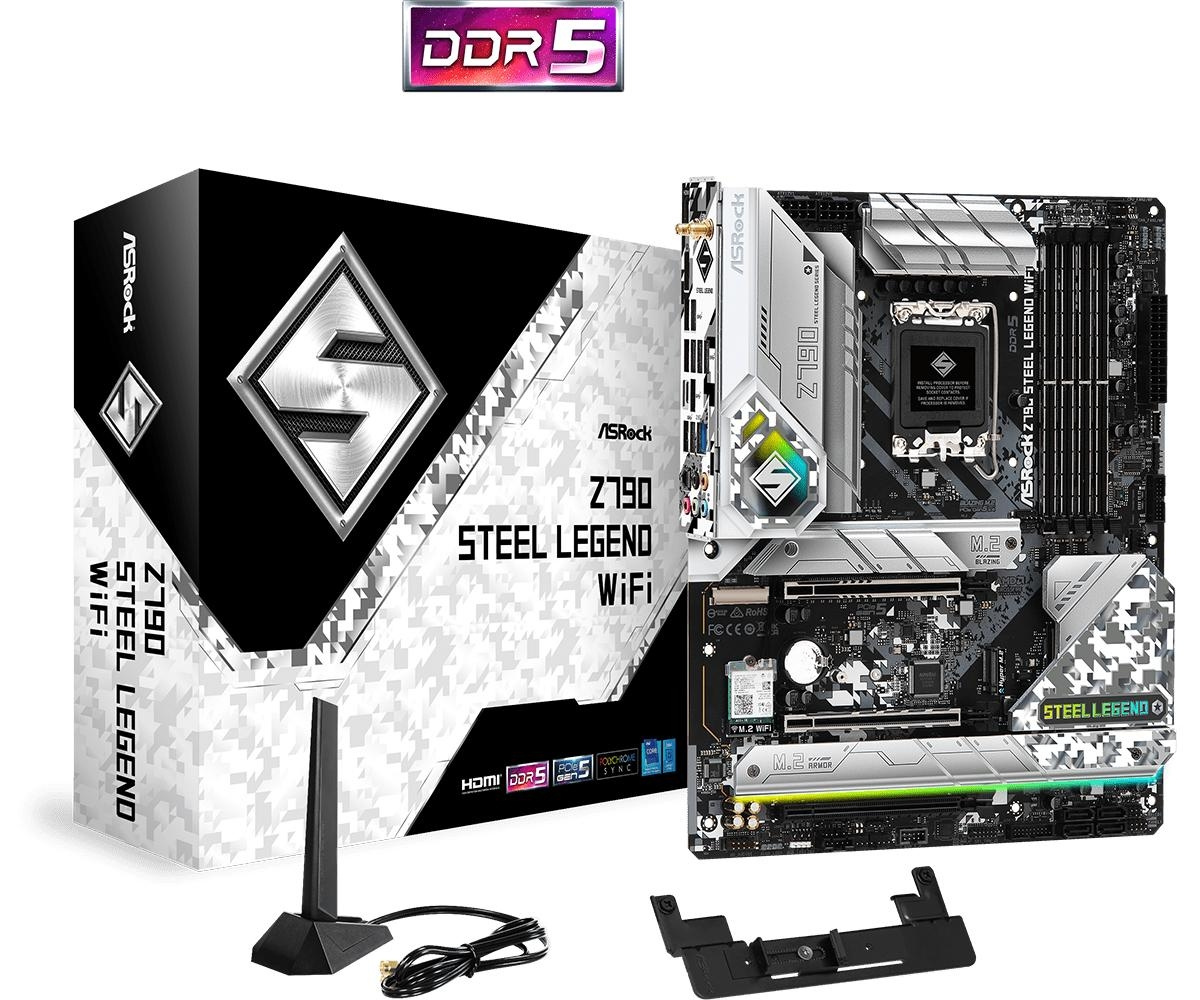

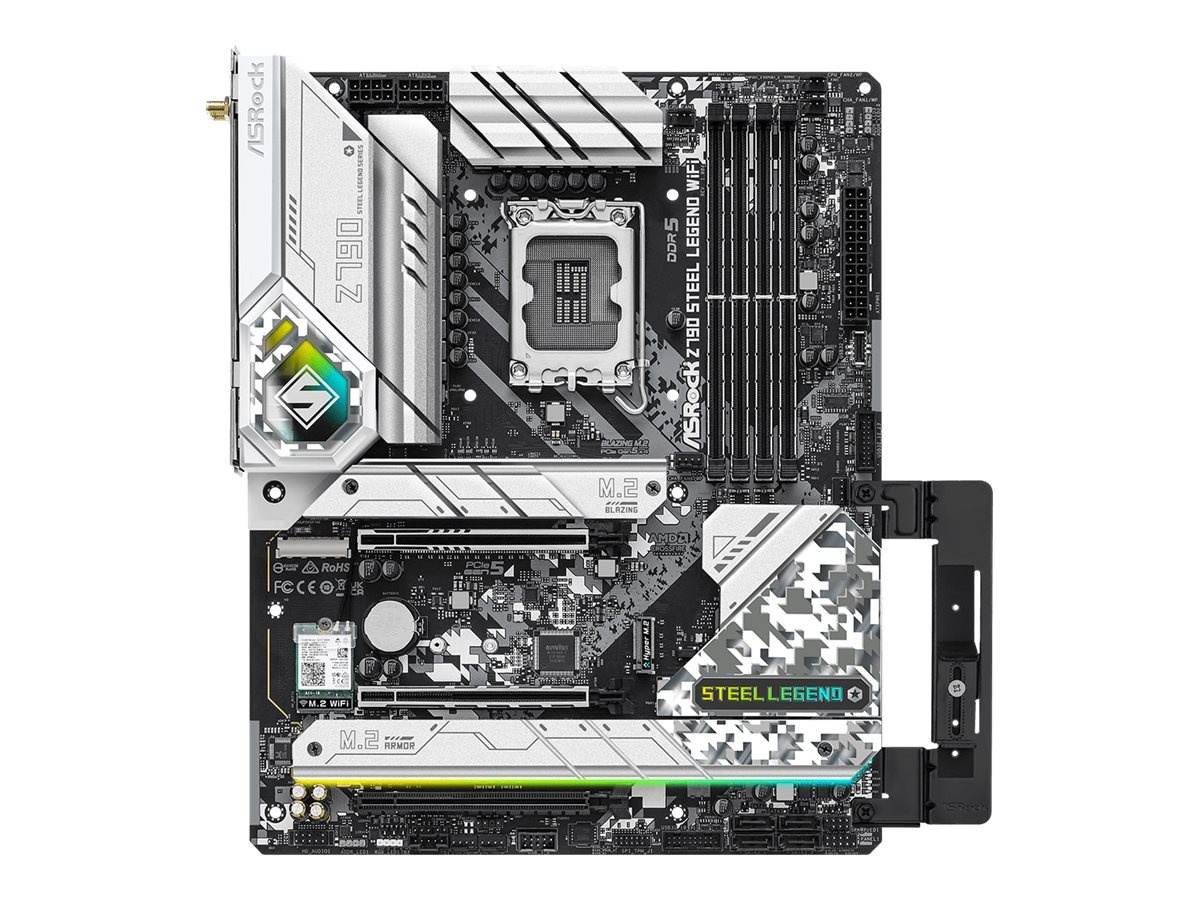

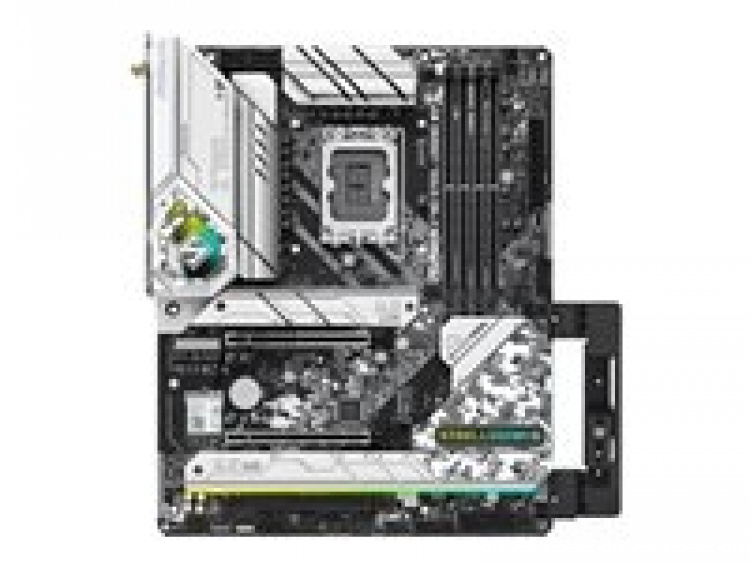

ASRock Z790 Steel Legend Wifi - DDR5

Art.nr: C67051
€311.99

Voeg toe aan winkelwagen
Verzendtijd:  4-7 werkdagen
  • Qliro Checkout
  • 50.000+ producten
  • Snelle bezorging
Productinformatie
Audio Codec: Realtek ALC897
BIOS Properties: UEFI BIOS
BIOS Type: AMI
Width: 30.5 cm
Bus Clock: 4800 MHz (O.C.), 5600 MHz (O.C.), 6000 MHz (O.C.), 4000 MHz, 4800 MHz, 6800 MHz (O.C.), 3600 MHz, 4400 MHz
Depth: 24.4 cm
Features: Dual-channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0
Expansion Slots: 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 5.0 x16 (slot converted to x8 mode when an SSD is mounted on the fifth M.2 slot) | 1 x PCIe 4.0 x16 (x4 mode) | 1 x PCIe 3.0 x16 (x2 mode) | 1 x M.2 socket (2230 M.2 Key E slot) | 2 x (2260/2280 M.2)
Interfaces: 1 x HDMI | 1 x DisplayPort | 1 x USB-C 3.2 Gen 2 | 1 x USB 3.2 Gen 2 | 8 x USB 3.2 Gen 1 | 2 x antenna | 1 x audio output (rear surround) - mini-jack | 1 x microphone - mini-jack | 1 x audio input - mini-jack | 1 x audio output (front surround) - mini-jack
Hardware Features: ASRock Instant Flash, 15µ Gold Contact, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, 6 Layer PCB, ASRock EZ Mode, Nichicon 12K Black Caps, 2oz Copper PCB, Water Pump Header, pre-mounted I/O shield, Intel Turbo Boost Ma
Included Accessories: 4 x M.2 screws, ASRock graphics card holder, ASRock WiFi 2.4/5/6 GHz antenna
Internal Interfaces: 1 x USB-C 3.2 Gen 2x2 - header | 4 x USB 3.2 Gen 1 - header | 3 x USB 2.0 - header | 1 x audio - header | 1 x Thunderbolt - header | 1 x SPI - header | 1 x speaker - header
Compatible Processors: (supports 12th and 13th generation Intel Core / Pentium Gold / Celeron)
Chipset Type: Intel Z790
Storage Interfaces: SATA-600 - connectors: 8 x 7 pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 5.0 - connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 | PCIe 4.0 - connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 5
Maximum Size: 128 GB
Maximum Number of Processors: 1
Included Cables: 2 x Serial ATA cable
Included Software: ASRock A-Tuning, ASRock Dragon 2.5G LAN Software
Network Interfaces: Bluetooth, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax
Network Controller: Dragon RTL8125BG
Processor Socket: LGA1700 socket
Registered or Buffered: Unbuffered
Standards Followed: FCC, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3, CEC Tier II
Power Connectors: 24-pin main power connector, 2 x 8-pin ATX12V connectors
Supports Ram Integrity Check: Non-ECC
Technology: DDR5
Type: HD Audio (8 channels)
Product Type: Motherboard - ATX
4710483940859EAN:
