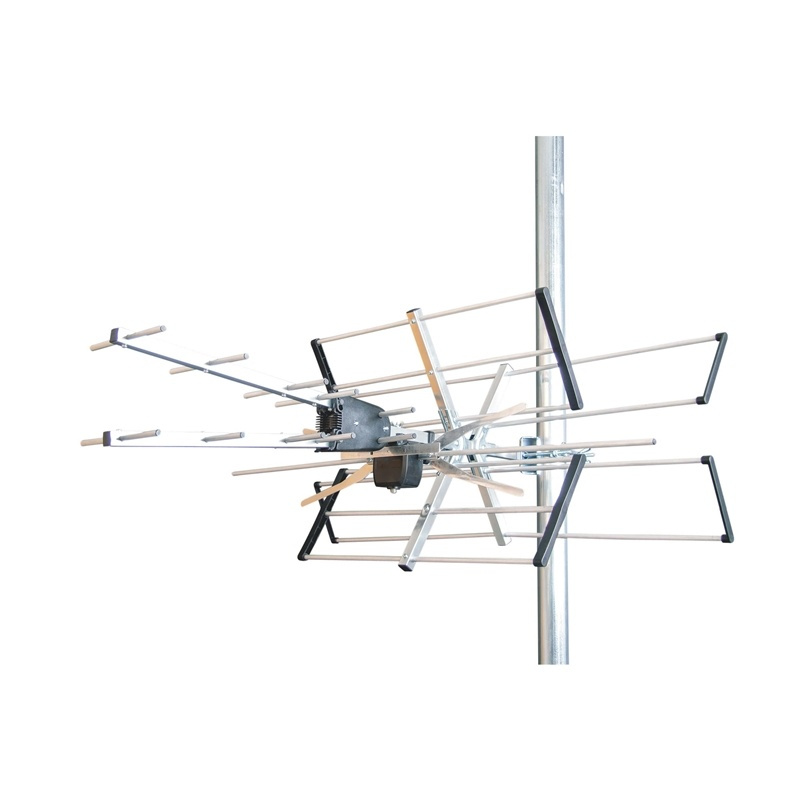

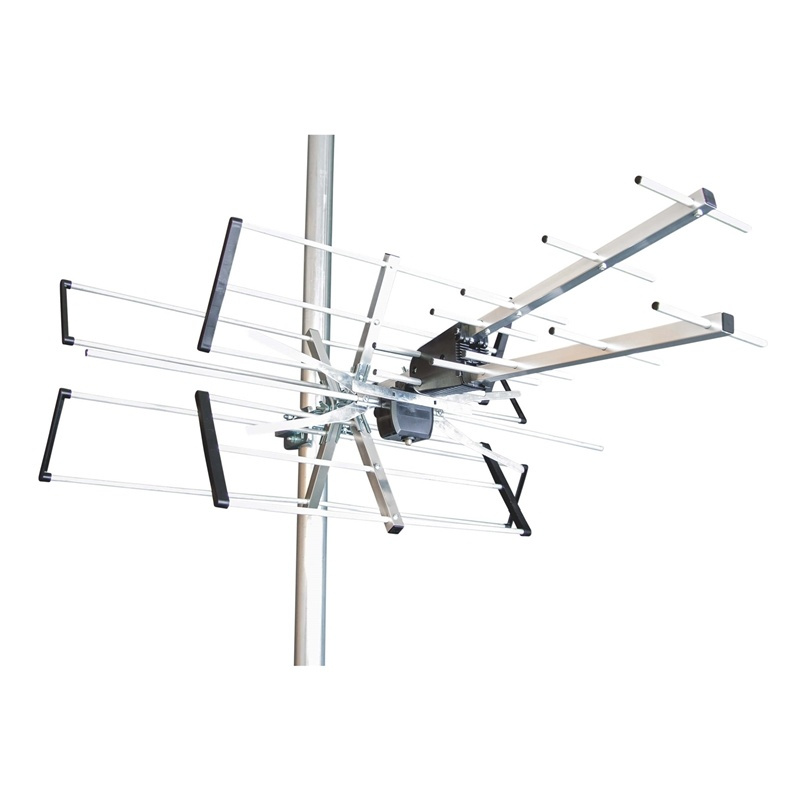

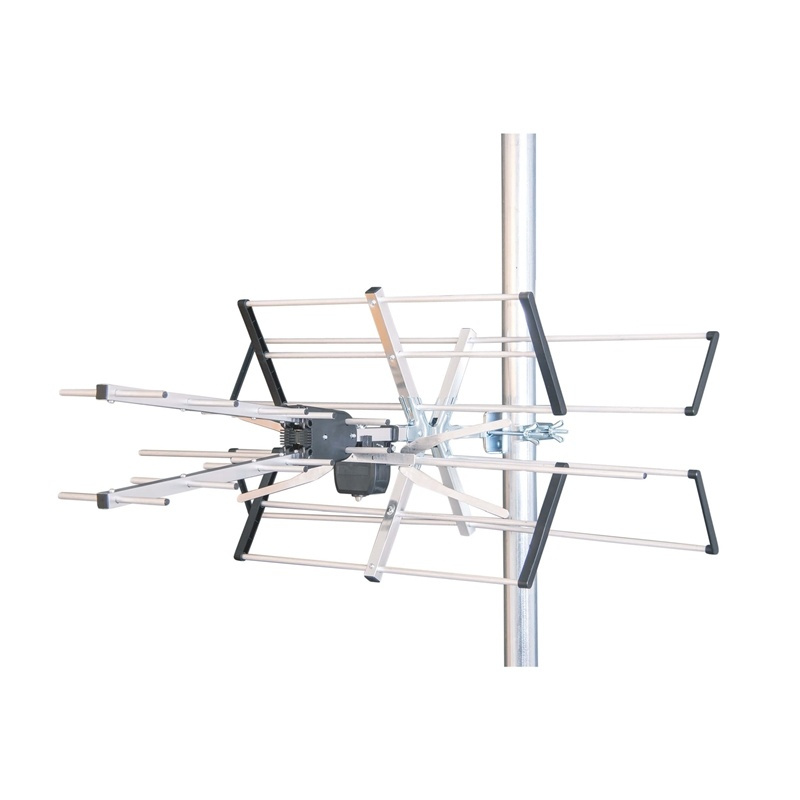

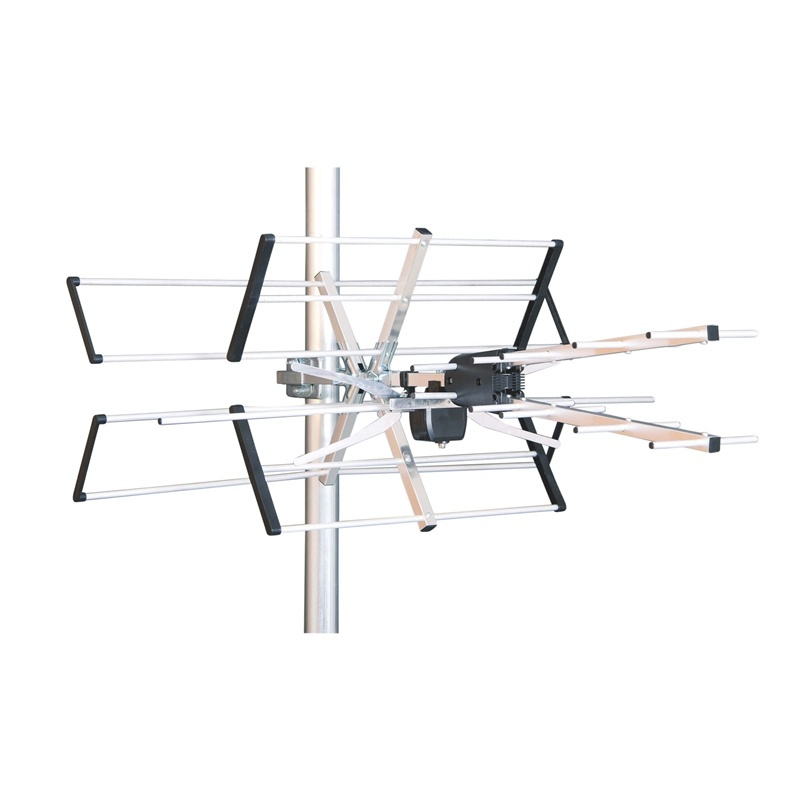

Combi Antenna 22 LTE700 Kanal 5-12/21-48 SE/FI and DAB/DAB+
- Interference protection - wipes out LTE 700/800 mobile signals
- Robust design - light alloy metal boom (18x18mm) square tube.
- Corrosion and weather proof dipole housing
- Semi assembled antenna
Designed for TV (470...694MHz) and DAB/DAB+ (174...230MHz) reception.
Frequency
Band B III / DAB / DAB+ / B IV/V UHF
Channels 5...12 / 21...48
Frequency range VHF 174...230 MHz
Frequency range UHF 470...694 MHz
LTE protection 700
Gain
Gain - VHF 4.2...6.1 dB
Gain - UHF 9.0...10.0 dB
Gain @ 174 MHz (Ch. 5) 4.2 dBi
Gain @ 230 MHz (Ch. 12) 6.1 dBi
Gain @ 474 MHz (Ch. 21) 9.6 dBi
Gain @ 602 MHz (Ch. 37) 10.0 dBi
Gain @ 694 MHz (Ch. 48) 9.0 dBi
Loss
Rejection @ 758 MHz (Ch. 56) -17.4 dB
Rejection @ 788 MHz (Ch. 60) -5.6 dB
Electrical
Front to back ratio - horisontal 15...20 dB
Impedance 75 Ω
Connectors
Connector Type Saddle & Clamp (S&C)
Mechanical
Elements 22
Windload 88 N
Beamwidth horisontal ± 42 °
Main material Aluminium
Product Length 849 mm
Product Width 849 mm
