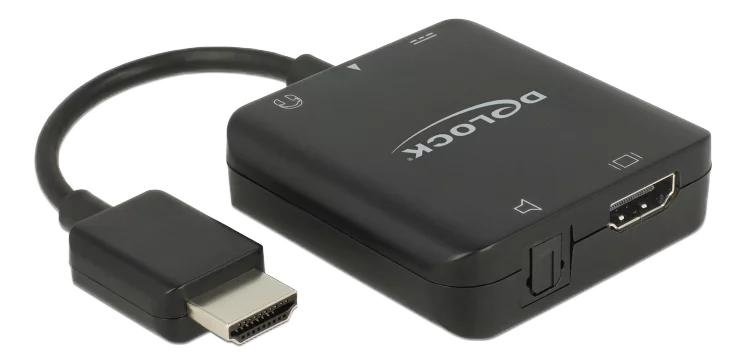

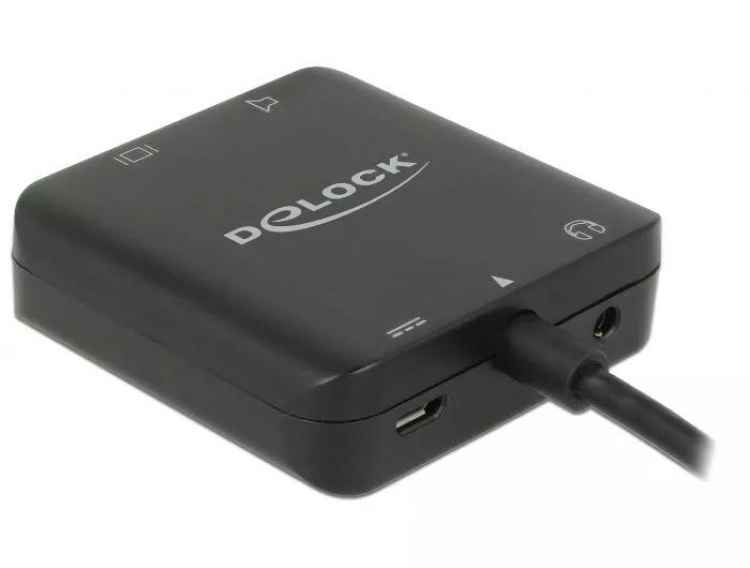

DeLOCK HDMI Audio Extractor 4K 60 Hz compact, black

Art.nr: C70611

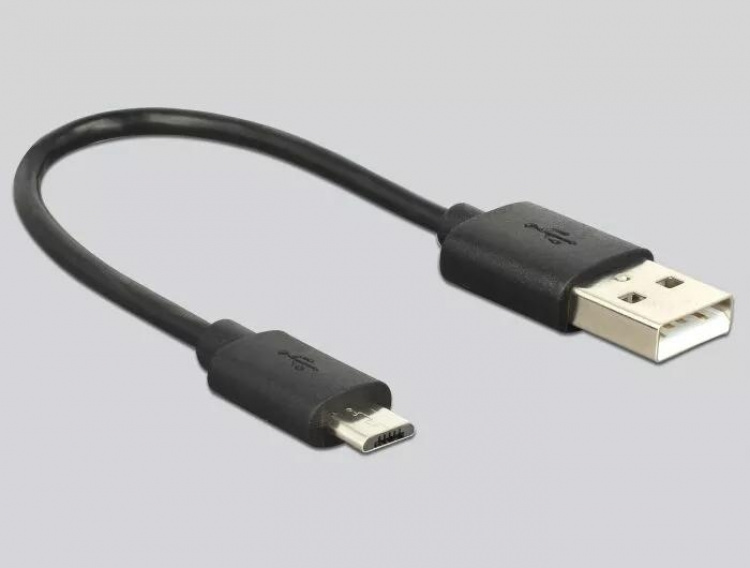

  • Connectors: Input: 1 x HDMI-A 19 pin male 1 x USB Type Micro-B female (5 V power supply)
  • Output: 1 x HDMI-A 19 pin female 1 x 3.5 mm 3 pin stereo jack female (audio) 1 x TOSLINK female S/PDIF
  • High Speed HDMI, 3D and HDCP 1.4 / HDCP 2.2
  • Supports HDR (High Dynamic Range)
  • Automatic switching to stereo (2.0) when using the stereo jack and automatic muting of the digital outpu
  • Resolution up to 3840 x 2160 @ 60 Hz
€70.99

Voeg toe aan winkelwagen
Verzendtijd:  3-7 werkdagen
  • Qliro Checkout
  • 50.000+ producten
  • Snelle bezorging
Productinformatie
Brutogewicht:0.111 kg
Connector 1:HDMI-male
Connector 2:HDMI-female
Kabellengte:0.3m
Kabelresolutie:3840x2160 60Hz
Kabelstandaard:HDMI 2.0
Kabeltype:HDMI
Kleur:Zwart
LSZH:Nee

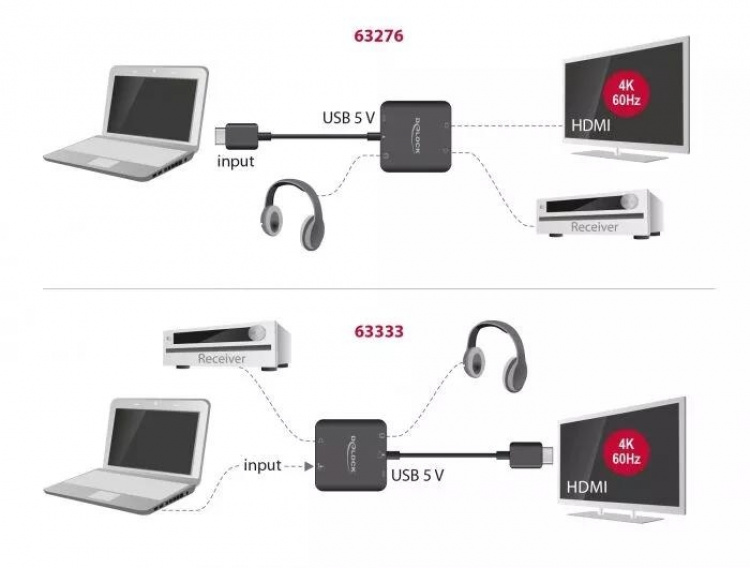

This adapter by Delock can be used to extract the audio signal from an HDMI transmission. While the video signal is displayed on a TV or monitor, the audio signal can be sent digital (S/PDIF) or analogue (stereo) to other devices, such as headphones or a surround receiver.

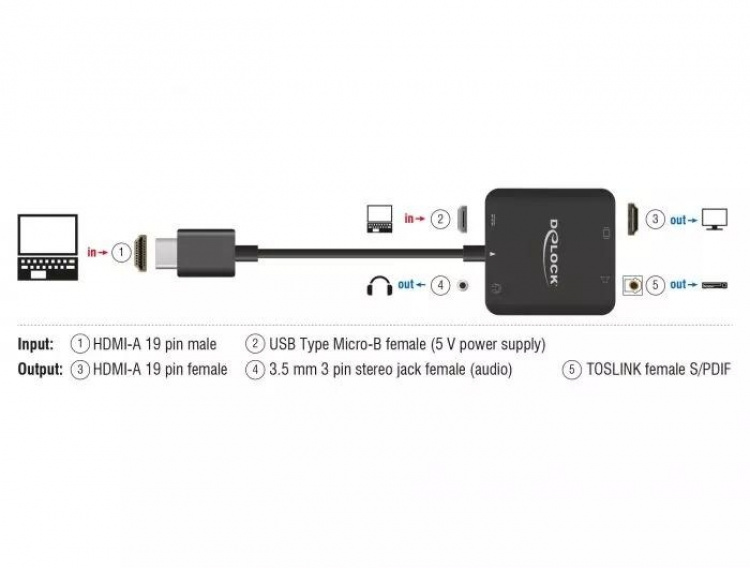

  • Connectors: Input: 1 x HDMI-A 19 pin male 1 x USB Type Micro-B female (5 V power supply)
  • Output: 1 x HDMI-A 19 pin female 1 x 3.5 mm 3 pin stereo jack female (audio) 1 x TOSLINK female S/PDIF
  • High Speed HDMI, 3D and HDCP 1.4 / HDCP 2.2
  • Supports HDR (High Dynamic Range)
  • Automatic switching to stereo (2.0) when using the stereo jack and automatic muting of the digital outpu
  • Resolution up to 3840 x 2160 @ 60 Hz
  • Video bandwidth up to 600 MHz / 6 Gbps, max. 18 Gb/s
  • Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital, DTS Audio
  • Supported sample rates: 16 / 20 / 24 bit, 32 / 44.1 / 48 / 88.2 / 96 kHz (depending on the system and the connected devices)
  • HDMI audio routed to the output (pass-through)
4043619632763EAN:
